12 units of W2E - W93 For Sale
Wind to Energy - 2.05MW
These W2E Wind Turbines were never in use
Total capacity 24.6-MW
On behalf of one of our US clients, we are pleased to offer these twelve (12) units of never in use W2E - W93 - 2.05MW never installed and 2011 manufactured Wind to Energy GmbH (W2E) wind turbines with a total capacity of 24.6MW for immediate sale.
Eleven of these turbines are supplied complete but without towers and one complete unit plus tower. Each turbine has a rated power capacity of 2.05-MW. This is a combined rated capacity of 24.6-MW. They are designed to type class IEC 6100-1, Class 2A. The W2E engineering & technical design team was formerly a part of Nordex, Germany. Nordex was a large German wind turbine technology provider and manufacturer. The Assembly of the turbines was verified and certified by Bureau Veritas.
However, one tower (tubular steel, 4 sections 85m) had been manufactured and is available for these turbines. Our seller includes this tower as an added bonus at no cost to the buyer. This, of course, depends on the number of turbines purchased. Furthermore, 100m tower options are also available from the manufacturer for the remaining eleven (11) units upon request.
12 x W2E - W93 - 2.05MW (60Hz)
- Make & Model: W2E - W93
- Year of manufacture: 2011
- Quantity available: 12 units (one with tower)
- Rated Power: 2.05-MW
- Hub Height: 278.9 feet (85 meters)
- Rotor Blade Diameter: 306.1 feet (93.2 meters)
- Max Blade Height: 432.1 feet (131.7 meters)
- Min Blade Height: 126 feet (38.4 meters)
- IEC Classification: IIA
- Design type class IEC 6100-1, Class 2A
- Number of Rotor Blades: 3
- Rotor Orientation: Upwind
- Power Regulation: Blade Pitching
- Rotational Speed: 8.5 - 17.7 RPM
- Blades: Windovation WN453
- Generator: Winergy DFIG, 6-Pole with Slip Rings
- Current configuration: 60Hz - 690V (conversion to 50Hz optional)

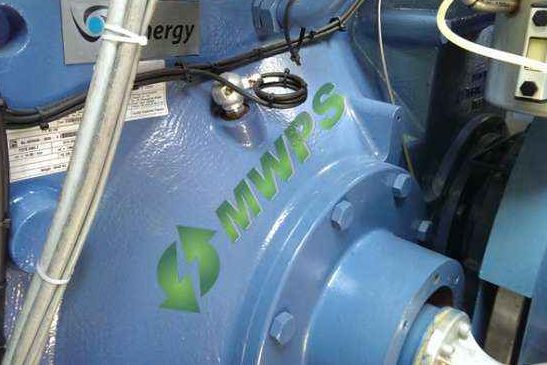

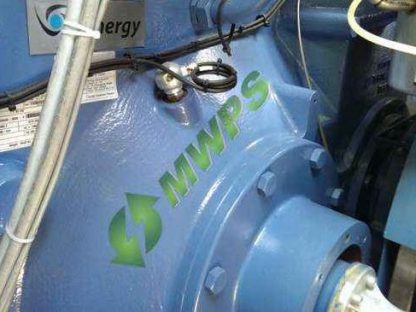

- Gearbox: Winergy PZFB 3465.2 2-Planetary + 1-Parallel Stage
- Main Bearing: SKF Double-Row Tapered Roller Bearing, with
- Main & Pitch Bearings - Rothe Erde
- Brake & Yaw Brake - Svendborg
- Converter – Converteam (Subsidiary of GE)
- Pitch Gear & Yaw Drive - Bonfiglioli
- Controller - Mita-Teknik
- Svendborg Brake & Yaw Brake
- Blade material: Fibreglass/polyester
- Control system Pitch controlled
- Yaw control: Powered
- Turbine Type: Pitch controlled
- Full manufacturers specifications and users guide
- Can be collected and shipped immediately - to anywhere in the world
- Only sensitive offers considered
- Sold as a 12 unit package - sale of single units also considered
- Price loaded onto trucks
- MWPS Global can assist in transport to anywhere in the world at highly competitive prices
These W2E - W93 2.05MW wind turbines are designed and manufactured under license by wind turbine technology provider Wind to Energy GmbH - Germany. There are over  W93 wind turbines operating around the world with a 96.7% availability factor. This means you can so rest assured that these are quality turbines. All major components of the W2E turbines are manufactured and supplied by world-class renowned manufacturers. Assembly was undertaken by Shenyang, a subsidiary of A-Power.
First of all, these turbines have been in storage since 2011. Therefore, the warranty has expired during that time. The buyer can also ask to be provided with technical support from W2E. The Wind to Energy GmbH (W2E) provides the design, manufacture, and construction of the remaining 11 towers (85m or 100m optional). Because W2E (Wind to Energy GmbH), the licensor of these turbines, does support these turbines after a sale, W2E will also provide overhaul and any refurbishing works needed prior to installation. So, a renewed warranty will be available if refurbishing and overhaul works are undertaken by W2E GmbH. Also, O&M maintenance service available after installation if required. Furthermore, the seller introduces buyers directly with relevant parties so any additional costs for those services are discussed directly with those entities/persons.
Basic inspection reports are also available for each nacelle. Three blades have some minor damage due to shipping and will need repairs to the gel coat before installation. The root end anchor bolts show some rust deposits. As a result, this can be accounted to incidental nicks and scraps caused during transport. There is no need to buy new blades. The damage on the three blades is only superficial. The blades will be fixed on-site.
Download Brochure - Technical Specifications:
- Wind to Energy W93 - 2.05MW Wind Turbine Technical Specification.pdf
Viewings arranged only if a signed LOI (Letter of Intention) has been received.
Time wasters and tire kickers will strictly not be accommodated!
