Used Wind Turbines For Sale
Six Units of VESTAS V20 For Sale – 100kW (50Hz)

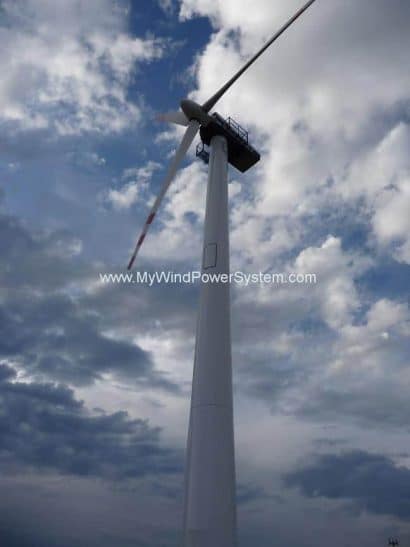

VESTAS V20 For Sale – 100kW- (50Hz)
- Tower Height: 23m
- Rotor Diameter: 20m
- 1987 Models
- Service history available
Product Description
VESTAS V20 For Sale
The V20-100 kW is derived from the robust, reliable, and well-proven VestasV17-90 kW wind turbine which has shown its strength all over the world. The service-friendly layout in modules continues in the V20-100 kW which is a blade stall-regulated wind turbine with a single generator.
The wind turbine is built up around a strong bed frame (1)which is made from sectional iron piping and steel plate in order to place all weldings in low-load areas. The forged main shaft (2) is fitted with two spherical roller bearings each placed in its own welded-up bearing housing with a bearing pipe between them. This build-up acts as a unit and takes up both radial and axial forces from the rotor. This construction ensures extra large grease volumes around the shaft and bearings which according to experience gives a long and trouble-free lifetime.
The cast blade hub (3) is bolted onto the main shaft. The blades (4) are bolted onto the blade hub. At the end of the main shaft, the two-stage gearbox with a parallel shaft is fitted with a clamping element. The disc brake (5) is placed on the low-speed shaft and is fitted with 4 hydraulic brake calipers and asbestos-free brake pads. The placing of the brake disc means a minimal load on the gearbox during braking.
The sale price includes:
- Complete Turbines – Towers, Nacelles, Blades, Hubs, Controllers
- Dismantling
- Loading onto trucks
- Technical drawings
- Service history available
IMPORTANT NOTES
- Viewings are arranged only if a signed LOI (Letter of Intention) has been received.
- Time wasters and tyre kickers will strictly not be accommodated!
Current Sales List – click here!
Call us today on ☎ +44 77 888 66 846
